98°CBoiling water, out of the same spout.
ChilledFiltered, from the machine beside it.
Boiling & Chilled Water Tap for the kitchen
Boiling water at 98°C, chilled filtered water and your normal hot and cold, from one tap on the worktop. Manufacturer-direct, from our own factory in Taizhou, China.
Move the cursor through the steam, or wipe the cold glass on the right.
One spout, two machines, one filter.
Boiling water at 98°C, chilled filtered water and your normal hot and cold, from one tap on the worktop. Two machines and a filter sit under the counter, designed, assembled and tested in our own factory.
We manufacture for kitchen brands in the UK, USA, EU and Australia.
Hot on one machine, cold on the other.

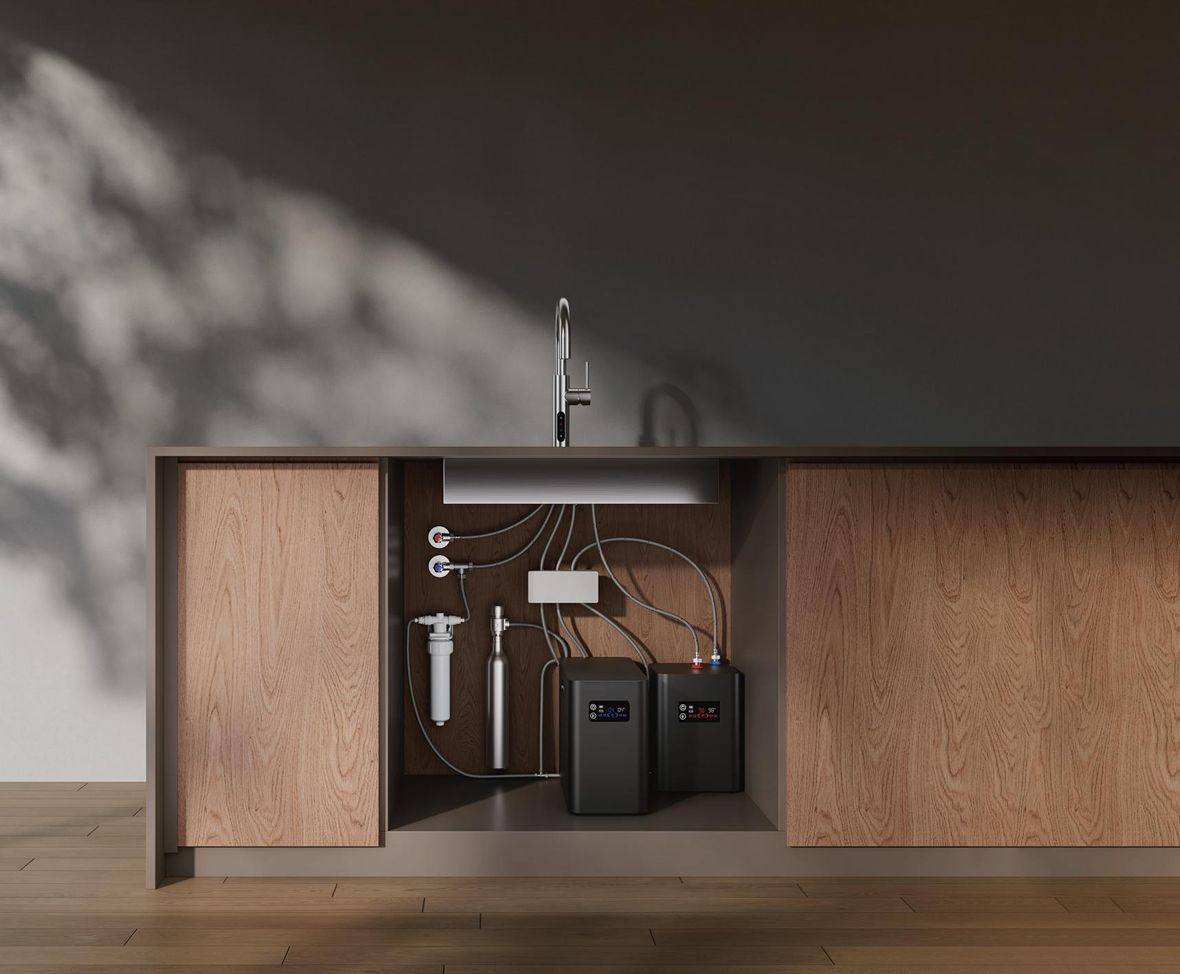

Plan for two cabinets.
Side by side, with 25 mm clear at each wall and between each unit, the three pieces need 833.2 mm.
A 600 mm cabinet gives about 564 mm inside, an 800 mm cabinet about 764 mm. Neither is wide enough, so the full system spans two cabinet bays.

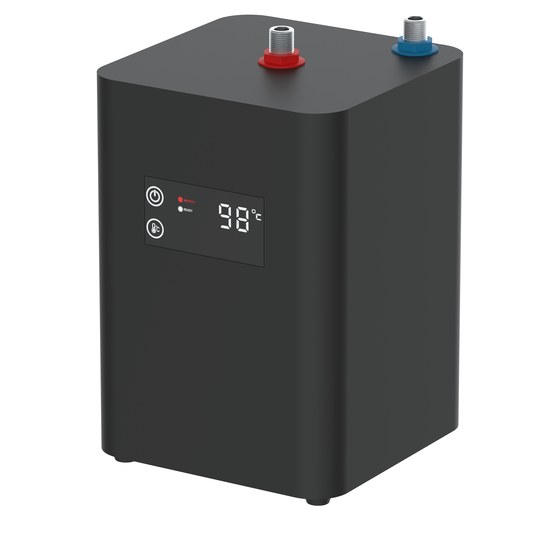

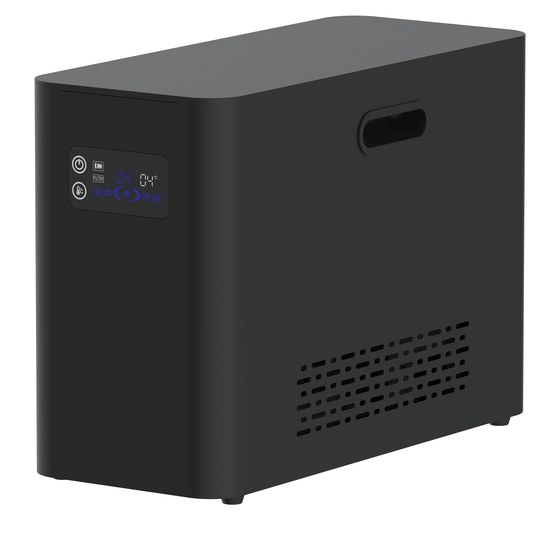

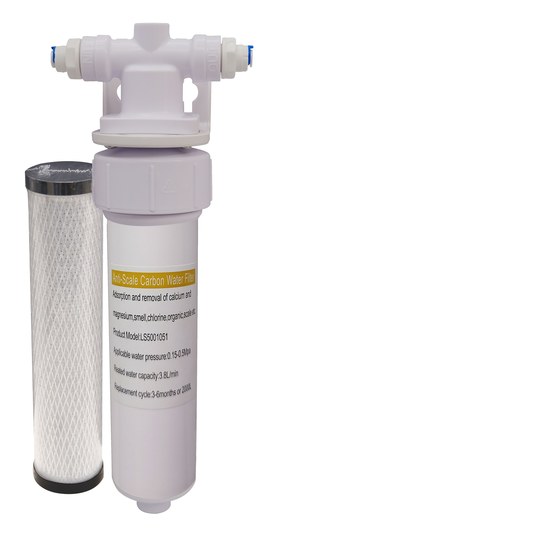

Boiling machine 188.2 × 188.2 × 260.7 mm. Chilled machine 440 × 188 × 306.2 mm. Anti-scale filter 105 × Ø66.5 × 295.4 mm.
Leave 230 mm below the filter to change the cartridge. Replace it every 3 to 6 months, or after 2000 L.
Under-counter layoutsFour taps, drawn at the same scale.
Each one stands on the same worktop line, at its real height relative to the others. Heights, clearance under the spout and reach in millimetres.

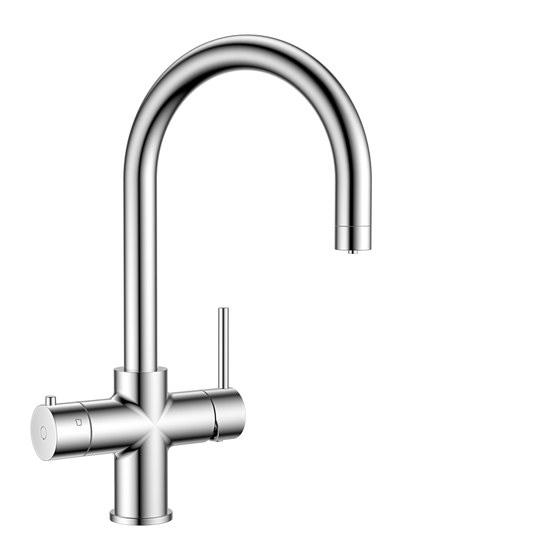

14001
Boiling, chilled and normal hot and cold. 397.3 mm tall, 230.4 mm under the spout, 200 mm reach.

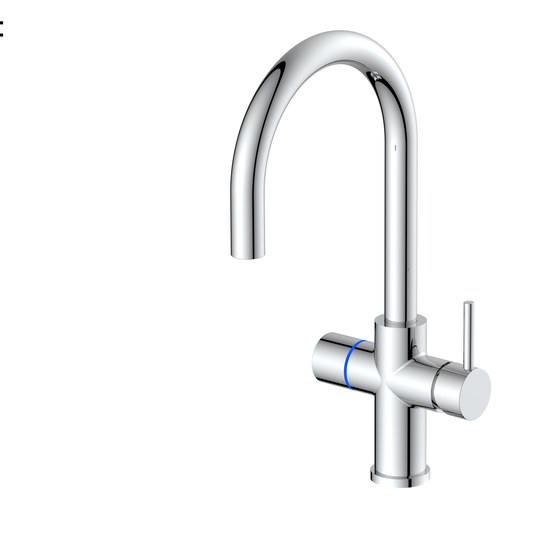

24012
Electronic control and the tallest spout. 415.9 mm tall, 252.1 mm under the spout, 200 mm reach.

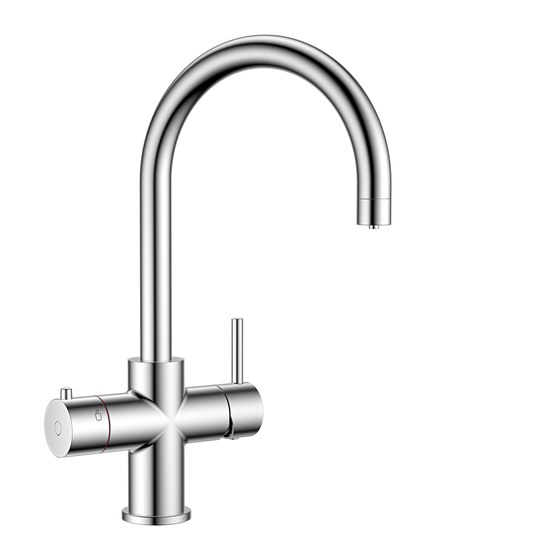

13001
Boiling with normal hot and cold. 360.3 mm tall, 225.4 mm under the spout, 186 mm reach.

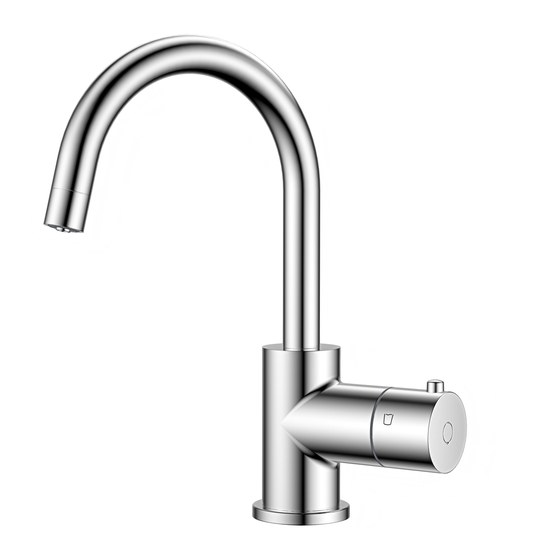

12001
A dedicated boiling tap. 248.6 mm tall, 155.6 mm under the spout, 139 mm reach.
Six finishes.
Chrome is the product image. The other five are rendered from that chrome image, so the colour on screen is a guide. Ask us for a physical finish sample.
Apply as a founding partner.
We are choosing our first distributors in the UK, Ireland and Australia. Places are by application, and territories are allocated one at a time.
- Territory allocation
- Sample support
- Product and installation training
- Joint marketing assets
- End-customer enquiries routed to you
- Direct engineering contact
Approvals, mark by mark.
- WRASUK water fittings approval. Being confirmed in writing model by model, including the certificate holder.
- CE / CBElectrical safety for the under-counter machines. Being confirmed in writing model by model.
- WaterMarkAustralian plumbing certification. Being confirmed in writing model by model; the Australian brass specification is quoted separately.
